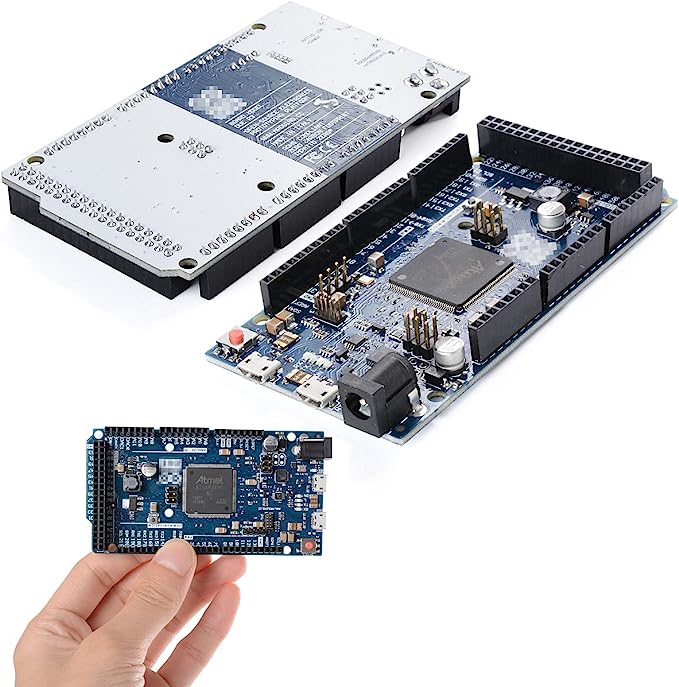

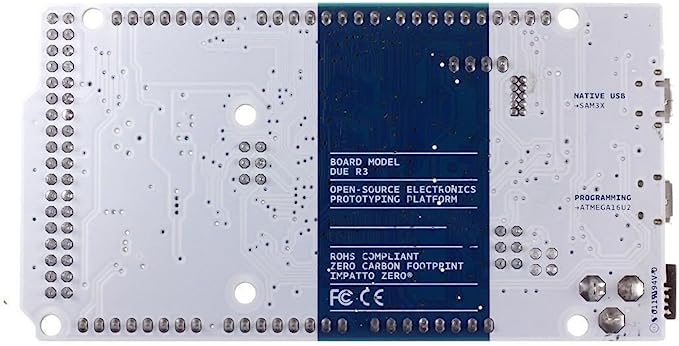

DUE R3 SAM3X8E 32-Bit ARM Master

Leaning Board
Package: DUE with wire
Installation Type: Through holes
Price:
$39.99 USD
Stock:
In stock (100.00 units), ready to be shipped

Product Description

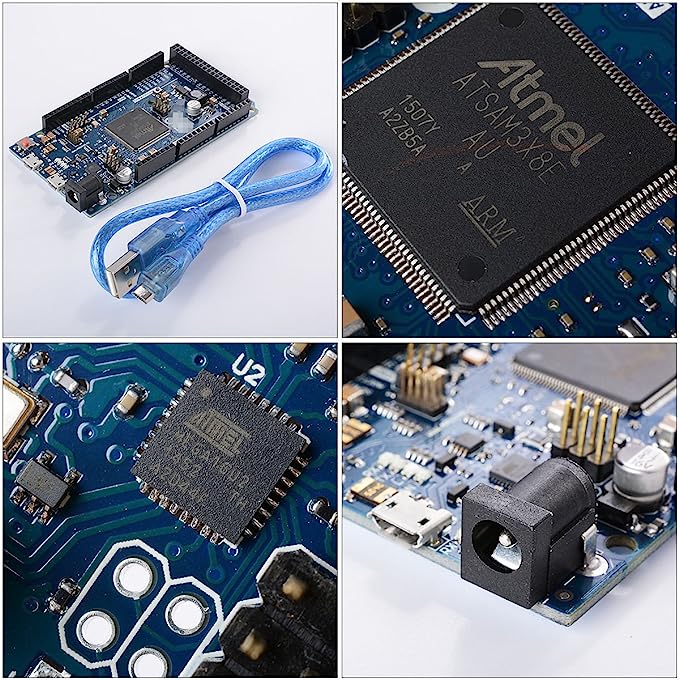

Microcontroller: AT91SAM3X8EA
Operating voltage: 3.3V
Input voltage(recommended): 7V - 12V
Input voltage(limits): 6V - 20V
Digital I / O pins: 54 (of which 12 provide PWM output)
Analog input pins: 12
Analog outputs pins: 2 (DAC)
Total DC output current on all I / O lines: 130mA
DC current for 3.3V pin: 800mA
DC current for 5V pin: 800mA
Flash memory: 512KB all available for the user applications
SRAM: 96KB (two banks: 64KB and 32KB)
Clock speed: 84MHz

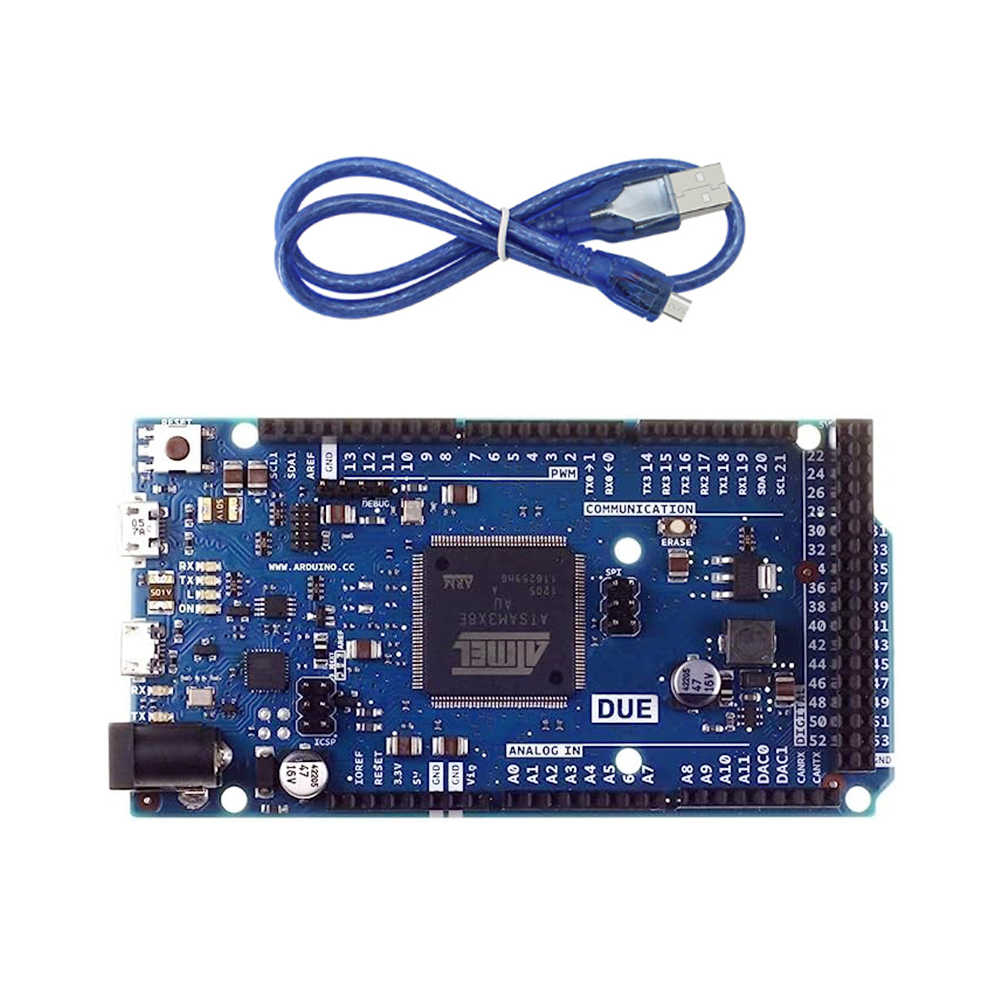

Package included:
1 x DUE R3
1 x USB cable
